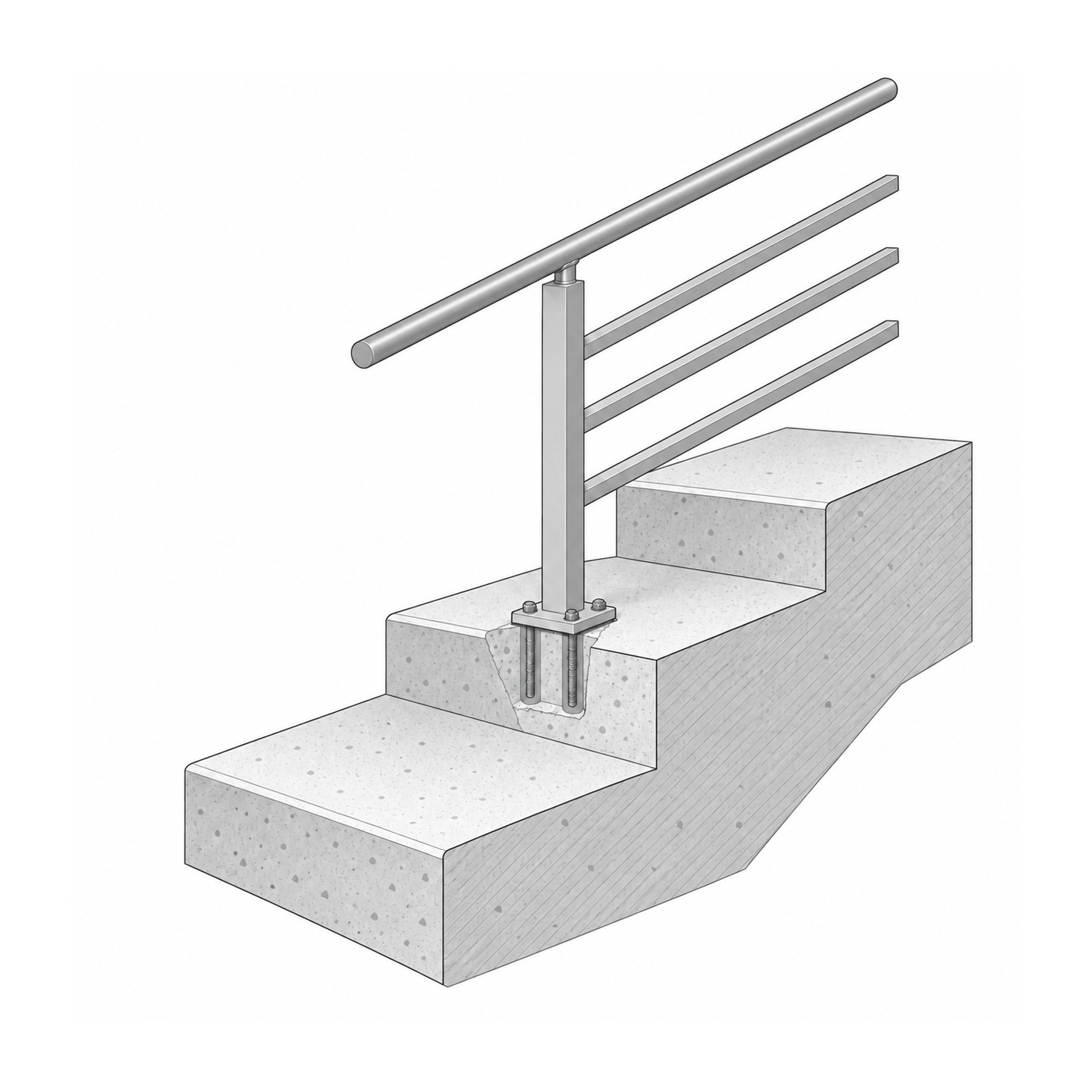

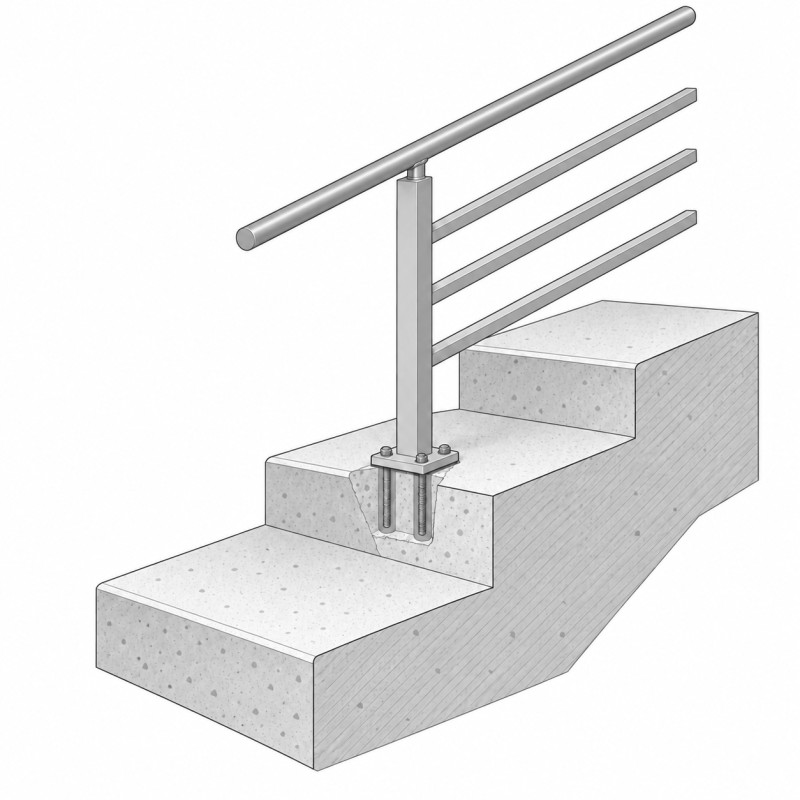

Outdoor Stair Railing, illustrative fixing detail, resin-anchored rods in a concrete step

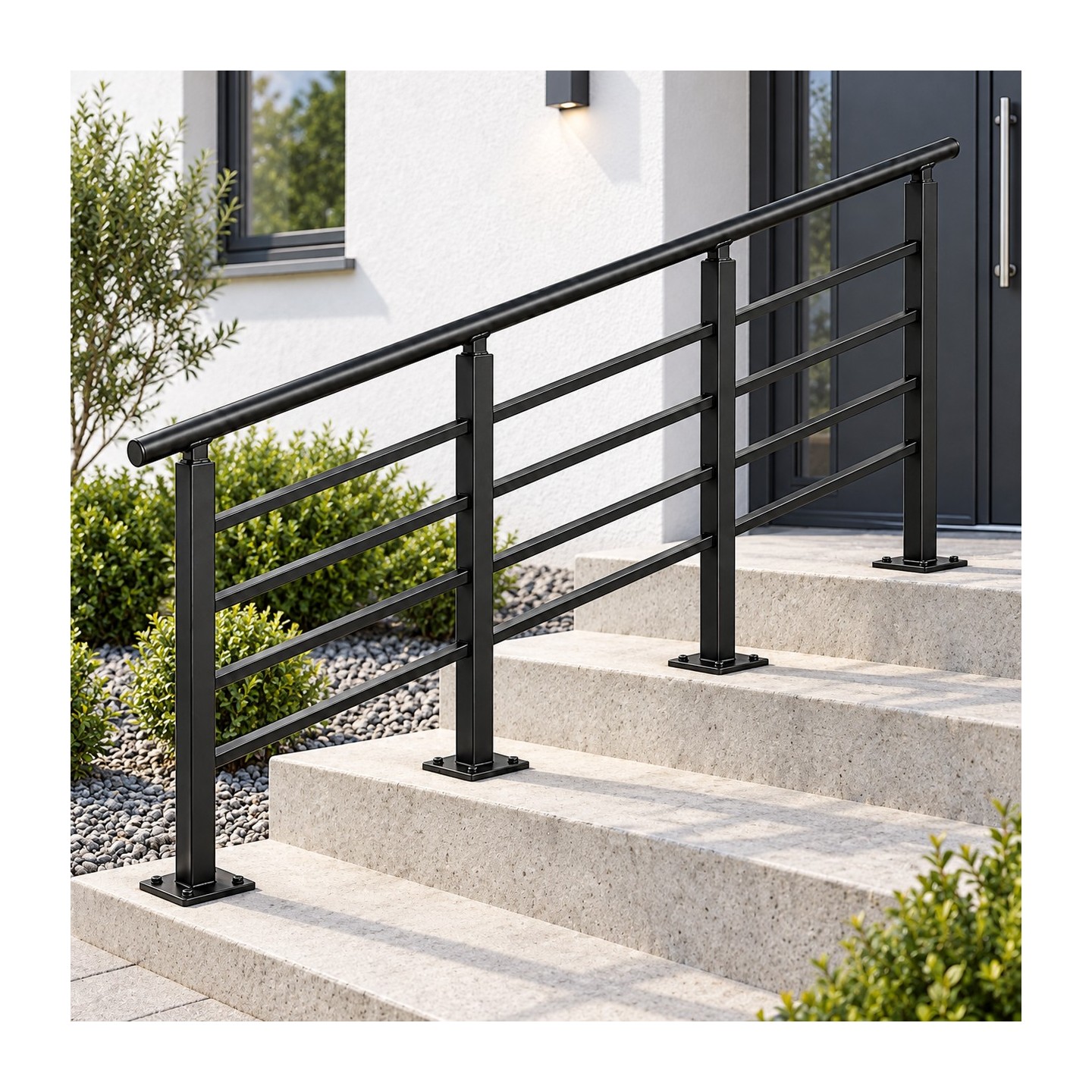

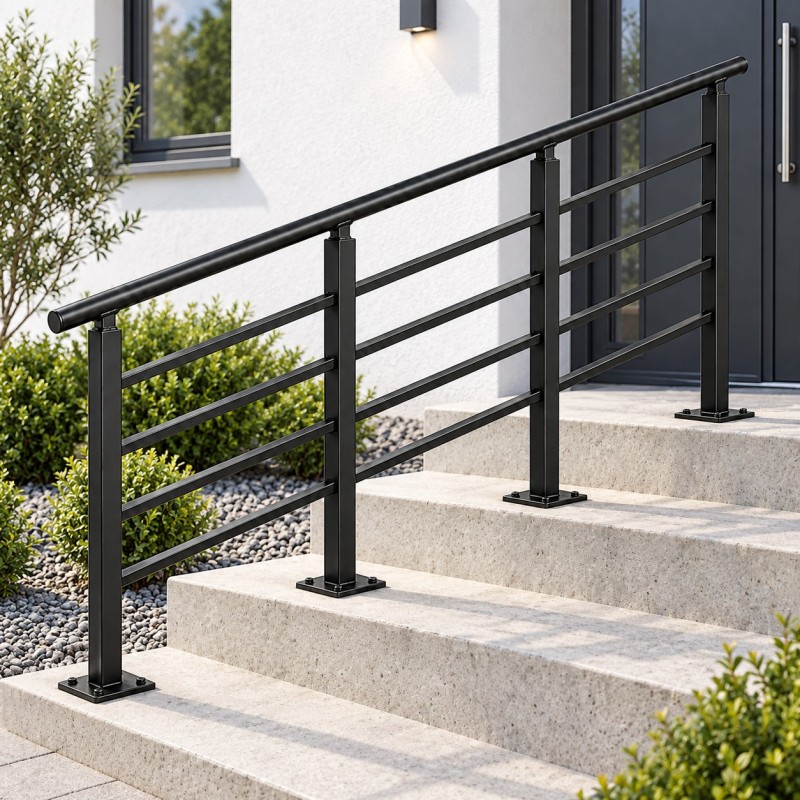

Outdoor Stair Railing, on concrete entrance steps

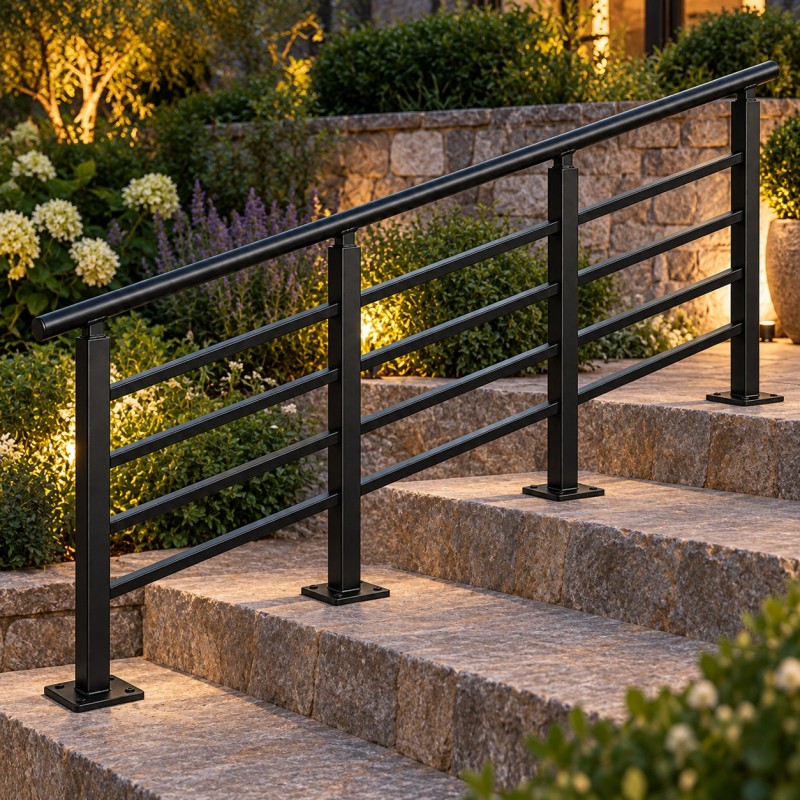

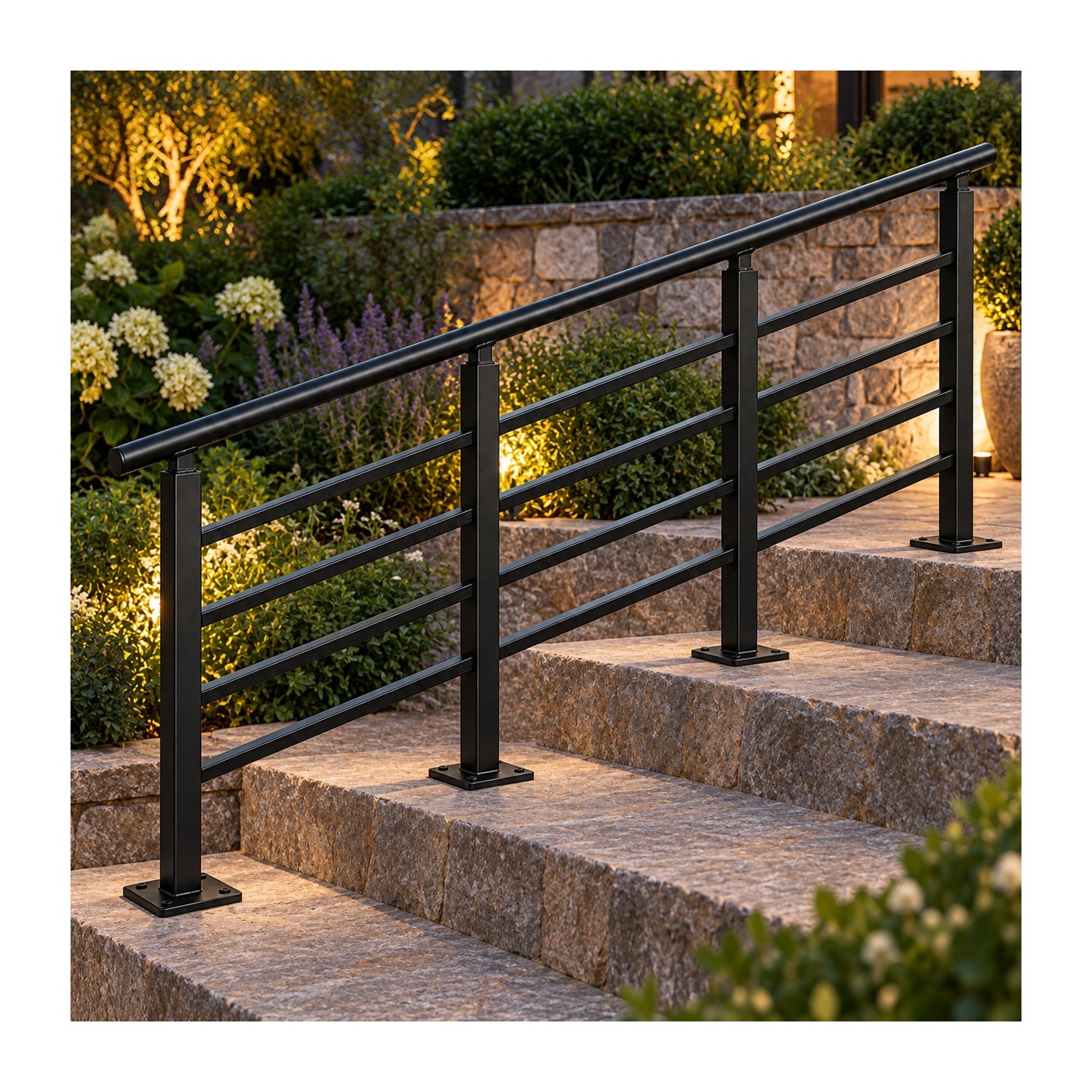

Outdoor Stair Railing, on stone garden steps in evening light

Outdoor Stair Railing

€790.00

No tax

This outdoor stair railing is a welded steel guard for garden steps, terrace stairs and entrance flights. Square posts on mounting plates carry a continuous sloping handrail, and the square-section infill runs parallel to the pitch line.

Posts, handrail and infill are S235JR steel with fully welded joints, and every bar ends and connects at a post. As standard the infill is square steel bars 20 x 20 mm, max. 100 mm clear gap; a denser spacing is made on request.

The base configuration is a 2600 mm run, 1000 mm high above the pitch line. Each railing is built to the actual stair: run length and pitch angle, number and spacing of posts, landings and changes of direction. Hot-dip galvanising is the standard finish; the railing can stay in raw zinc or take a powder coat over the galvanising in any RAL colour.

Order the standard 2600 mm run at the price shown, or send the number of steps, their going and rise, and the length of the flight for a quotation, and we reply within 24 hours on working days. Anchors are chosen for concrete, stone or brick steps, and we agree the exact dimensions with you before production.

Made to order: ships within 8 weeks

Photo, scan or hand drawing. We draw the technical diagram.

Made to measure

Secure checkout

Worldwide delivery

Direct from the workshop

No reviews yet

A sure grip on every step

The Outdoor Stair Railing is a straightforward, well-built guard for garden steps, terrace stairs and entrance flights. Square posts on mounting plates carry a continuous sloping handrail, and the square-section infill runs parallel to the pitch line as if drawn with a ruler. Every bar ends and connects at a post, so the infill is supported along its full length.

The whole assembly is welded steel made for permanent outdoor use. It feels as solid under a gloved hand in winter as it does in summer, and the galvanising protects it for years without painting.

Choose your infill spacing

The infill comes in a denser or a more open spacing. Denser closes off the side of the stair more, more open looks lighter. As standard the infill is square steel bars 20 x 20 mm, max. 100 mm clear gap; a denser spacing is made on request.

Made to measure for your steps

The base configuration is a 2600 mm run with a guard height of 1000 mm measured from the pitch line. Every railing is built to the actual stair:

run length and pitch angle,
number and spacing of posts,
landings and changes of direction,
top fixing on the treads or side fixing to a stringer or wall.

Materials and construction

Posts, handrail and infill in S235JR steel
Continuous handrail with capped ends
Square-section infill parallel to the stair
Mounting plates pre-drilled for anchors
Fully welded joints, dressed before finishing

Finish

Hot-dip galvanising is the standard finish and protects the steel inside the sections too. Leave the railing in the raw silver of the zinc, or add a powder coat over the galvanising in any RAL colour, such as matte black.

What's included

Railing built to the dimensions of your stair
Posts with mounting plates
Hot-dip galvanising, optional RAL powder coat

Anchors are chosen for the material of your steps: concrete, stone or brick. Exact dimensions are confirmed before fabrication.

Ordering

Order the standard version at the price shown, or send the number of steps, their going and rise, and the length of the flight for a quotation. We confirm your order within 2 working days without changing the price or the delivery cost, and you pay by bank transfer after our confirmation; if you are unsure, ask before ordering. Collect the railing free of charge from our workshop, or choose delivery in Poland, Spain, Italy or the United Kingdom at the flat rate shown at checkout (for the UK, import VAT and duty are paid on arrival); delivery to other countries is by quotation. See also: Steel Balustrade.
