French Balcony with Glass Infill

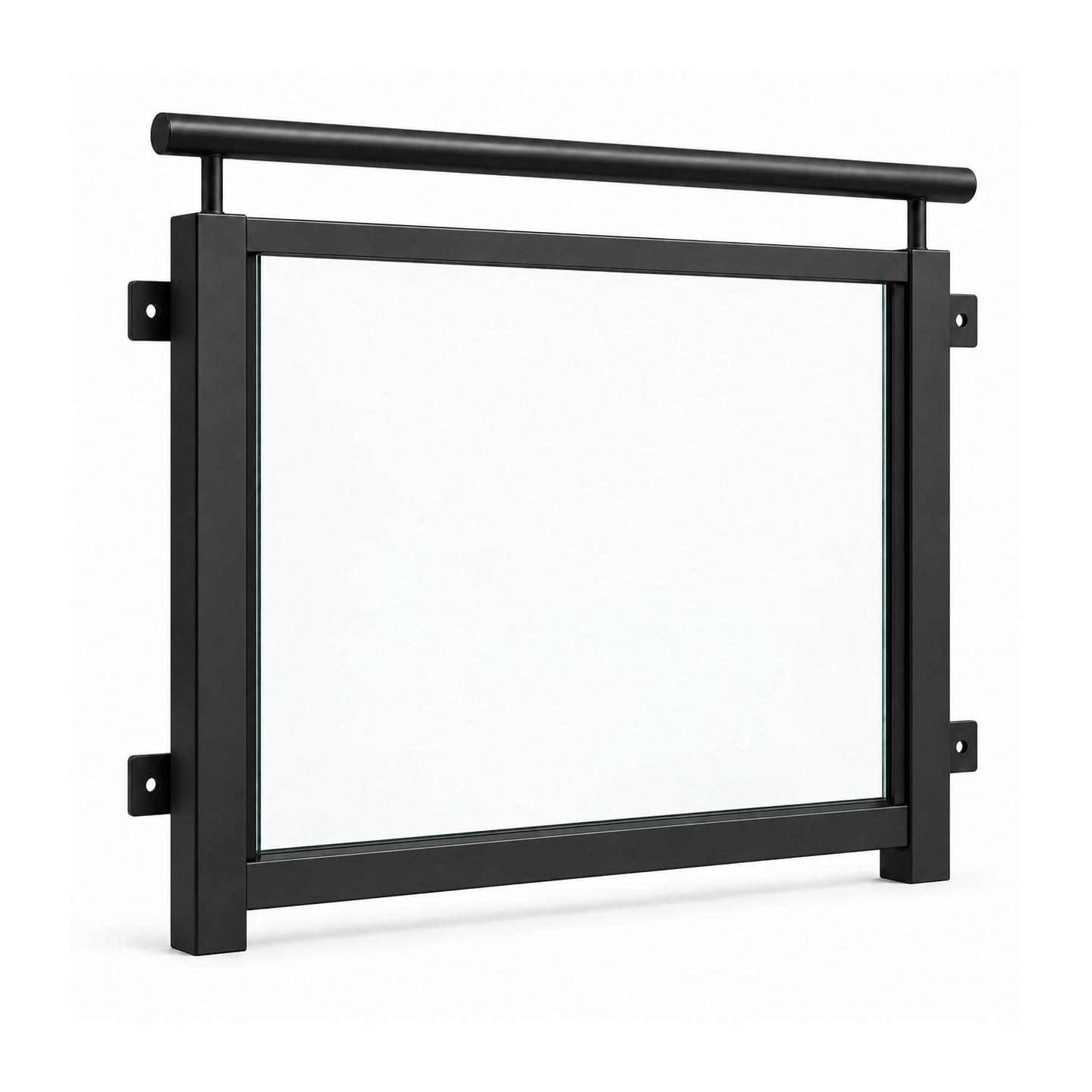

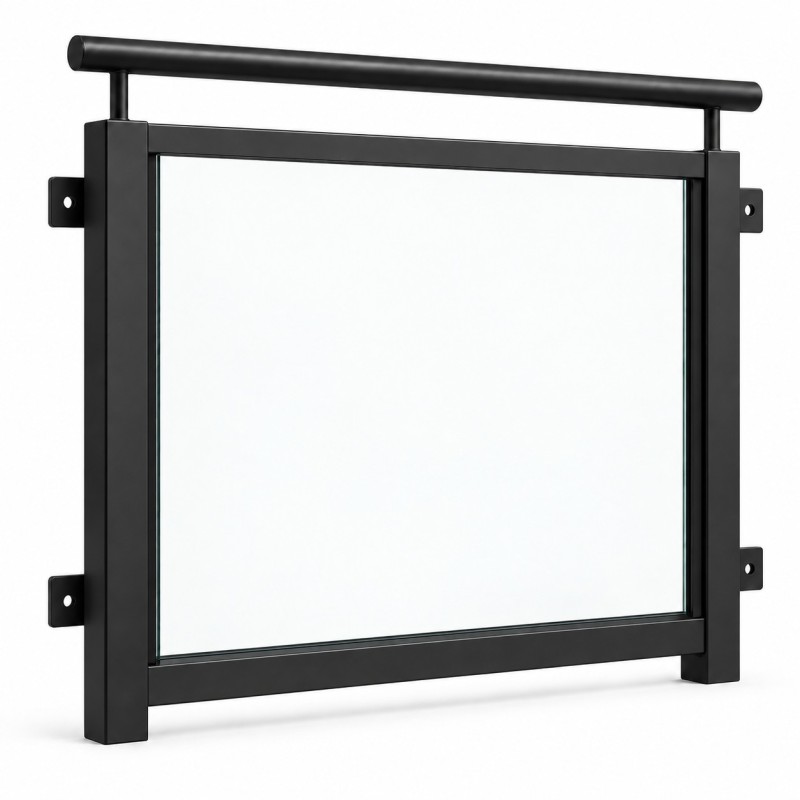

The French Balcony with Glass Infill is a glass Juliet balcony for floor-to-ceiling windows where you want a view, not bars. A welded frame with square posts holds a pane of laminated safety glass, and a round tube handrail runs along the top, its configuration agreed for your project.
The glass is retained along its edge in a continuous gasketed profile, so no clamps are drilled through it. Brackets fix the frame to the facade and keep the glass off the wall.
The base size is 1500 x 1100 mm; every balcony is made for its opening, with one pane or several fields across a wide one. Choose clear or satin glass: the standard pane is 13.52 mm laminated safety glass (2 x 6 mm heat-strengthened, 1.52 mm PVB), held on all four edges, and thicker glass is used where the pane size or the rules of your country require it. The frame is S235JR steel or welded aluminium, powder coated in any RAL colour.
The glass pane and the welded brackets are included, and anchors are chosen for your wall. Order the standard version at the price shown; for another opening, send its size and your facade type for a quotation, and we reply within 24 hours on working days. Name your glass type and colour in the order comment at checkout. Collect in person, free of charge, or choose delivery in Poland, Spain, Italy or the United Kingdom at the flat rate shown at checkout (for the UK, import VAT and duty are paid on arrival); delivery to other countries is by quotation.
Protection without losing the view
The French Balcony with Glass Infill is made for floor-to-ceiling windows where you want to see the garden, the city or the horizon rather than bars. A welded frame with square posts holds a single pane of laminated safety glass, topped by a round tube handrail that is pleasant to the touch and comfortable to lean on.
The glass is retained along its edge in a profile, a continuous channel that holds the pane along its length. There are no point clamps drilled through the glass, so the line stays calm and the pane is supported along the whole edge. The frame fixes to the facade on brackets, which keeps the glass off the wall and easy to clean.
Made to measure for your opening
The base size is 1500 mm wide and 1100 mm high. Every balcony is built for a specific opening. Wide openings can be closed with one pane or split into several fields, and the glass build-up is matched to the size of the pane: 13.52 mm laminated safety glass as standard, thicker for larger panes. The balcony is designed to the EN 1991-1-1 line loads with the national annex of your country, and a project calculation for building control is available on request.
- clear glass, or satin glass where privacy matters,
- steel or welded aluminium,
- frame and handrail in any RAL colour,
- brackets suited to your facade type.
Materials and construction
- Welded frame with square posts, S235JR steel or aluminium
- Round tube handrail with capped ends
- Laminated safety glass, cut to size
- Glass retained along its edge in a gasketed profile
- Wall brackets pre-drilled for anchors
Finish
Steel frames are powder-coated in the RAL colour of your choice over a zinc-rich primer, and for exposed locations hot-dip galvanised before coating. Aluminium needs no galvanising and is powder-coated in the same range of colours.
What's included
- Welded frame with handrail made to your dimensions
- Laminated glass pane retained in the profile
- Mounting brackets welded to the frame
- Finish in your chosen RAL colour
Anchors are chosen for your wall build-up. Exact size, glass type and colour are confirmed before fabrication.
Ordering
Order the standard version at the price shown; for another opening, ask for a quotation before ordering, giving its size and your facade type. We confirm your order within 2 working days without changing the price or the delivery cost, and you pay by bank transfer after our confirmation; if you are unsure, ask before ordering. Collect the balcony free of charge from our workshop, or choose delivery in Poland, Spain, Italy or the United Kingdom at the flat rate shown at checkout (for the UK, import VAT and duty are paid on arrival); delivery to other countries is by quotation. See also the version with a flat top capping: French Balcony with Glass Retained in a Profile.
-
ReferenceBW-FRENCH-BALCONY-GLASS
-
DispatchShips within 8 weeks
-
MaterialSteel + glass
Welded steel -
Height1100 mm
-
FinishPowder-coated, any RAL colour
-
MountingWall-mounted
-
InfillGlass
-
Default width1500 mm
-
Made to measureAny width on request
-
Safety glassLaminated safety glass 13.52 mm: 2 x 6 mm heat-strengthened, 1.52 mm PVB, clear, held on all four edges; satin or toughened laminated (heat-soaked) on request; thicker where the pane size or the rules of your country require it
-
HandrailRound tube handrail Ø 42.4 mm with capped ends
-
EngineeringDesigned to EN 1991-1-1 line loads with the national annex of the country of installation; glass selected following DIN 18008-4 Annex B; project calculation for building control on request
-
Fixing4 points, 2 per side, in the reveals or on the facade: M10 A4 stainless threaded rods in injection mortar (ETA), mesh sleeves in hollow masonry; load-bearing wall only, min. 100 mm from the reveal edge; stand-off anchors through insulation
-
RetentionPane held on all four edges in a continuous steel channel with EPDM glazing gaskets and setting blocks, at least 12 mm edge cover; no holes in the glass
-
TypeFrench balcony
