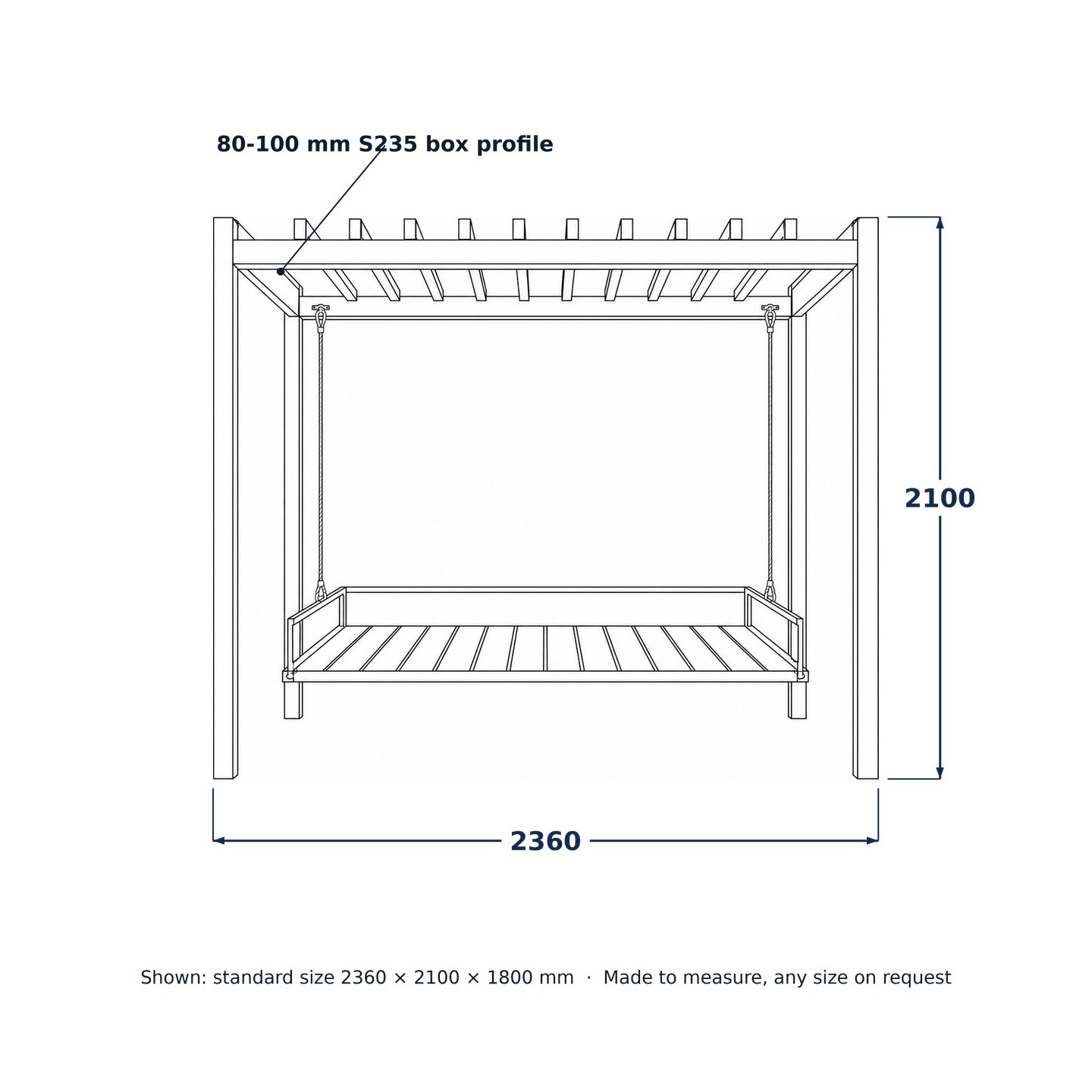

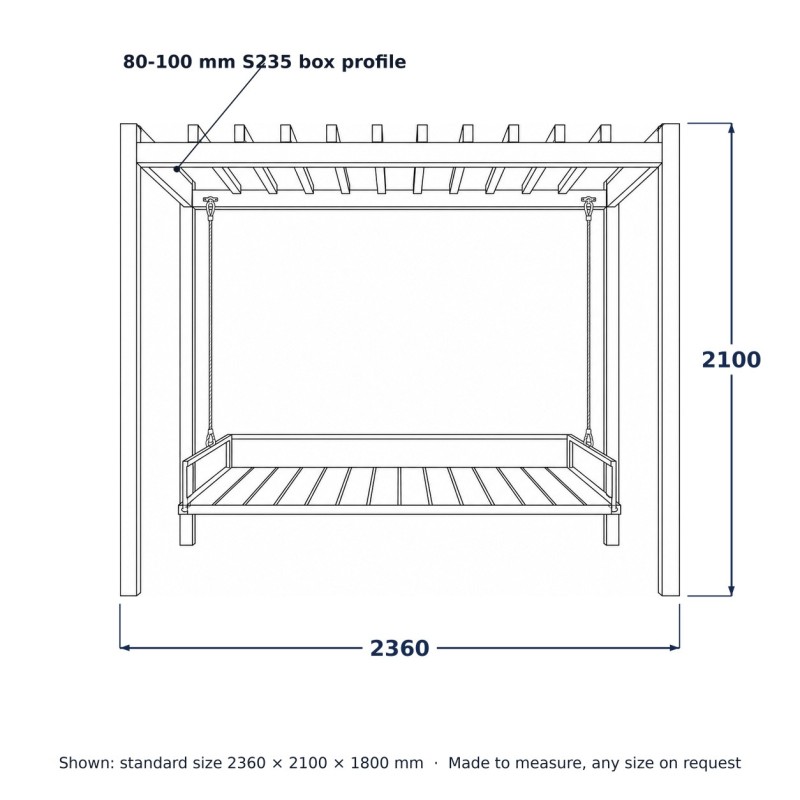

Cabana Daybed Swing, line drawing with standard dimensions

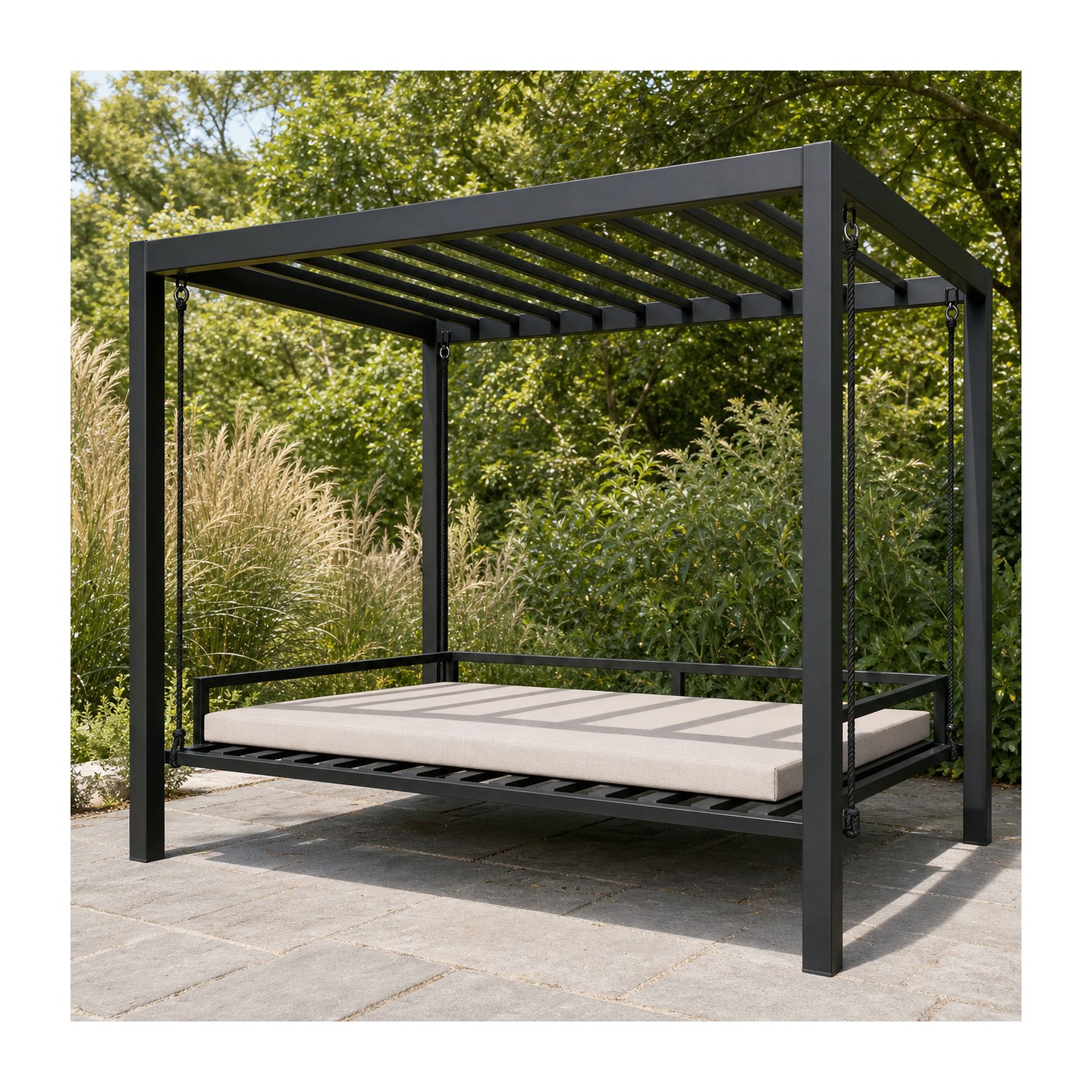

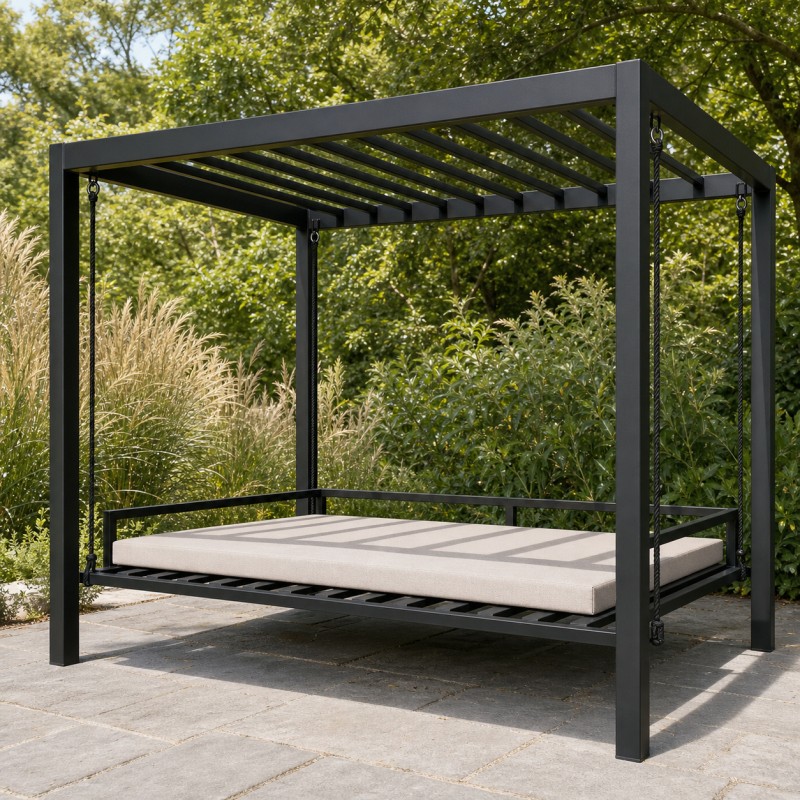

Cabana Daybed Swing, with a cushion on a garden patio

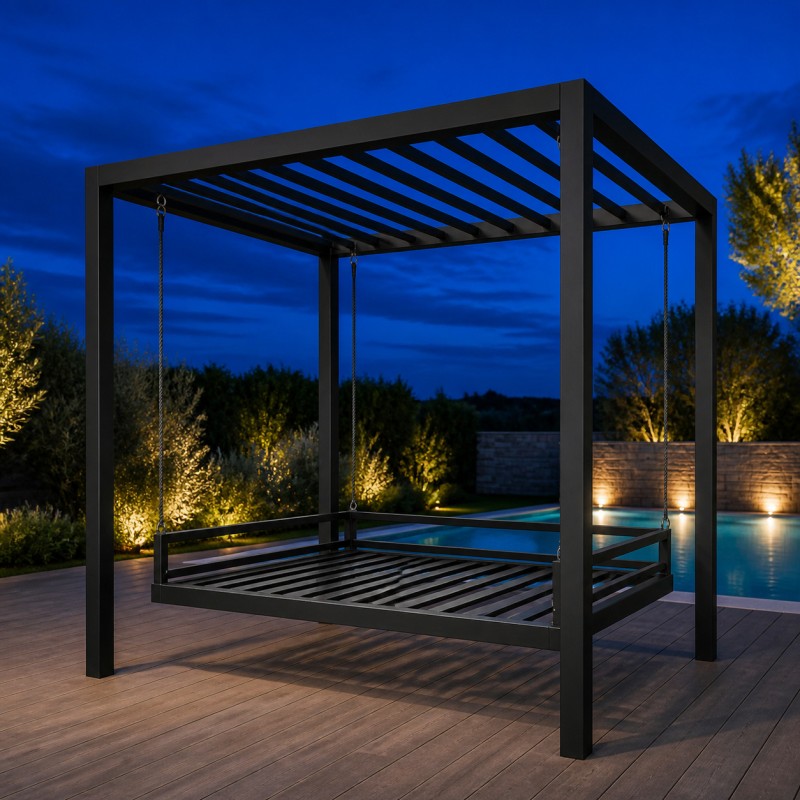

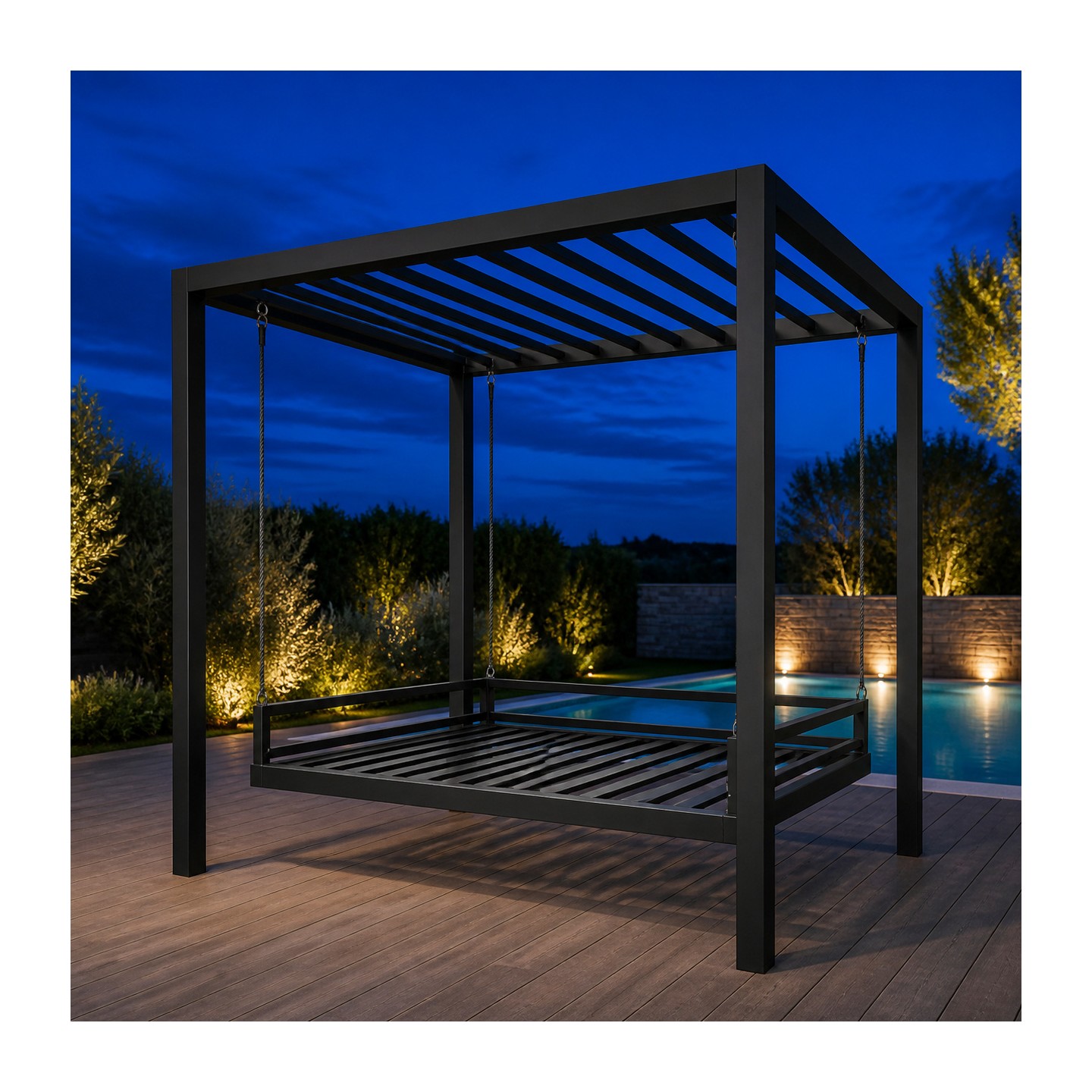

Cabana Daybed Swing, on a deck beside a pool at night

Cabana Daybed Swing

€2,390.00

No tax

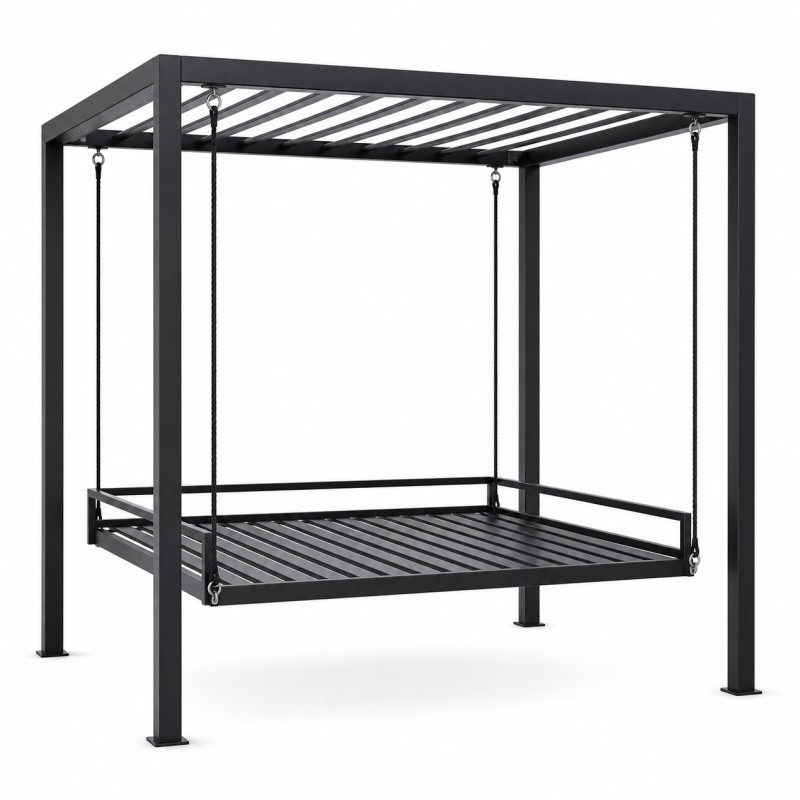

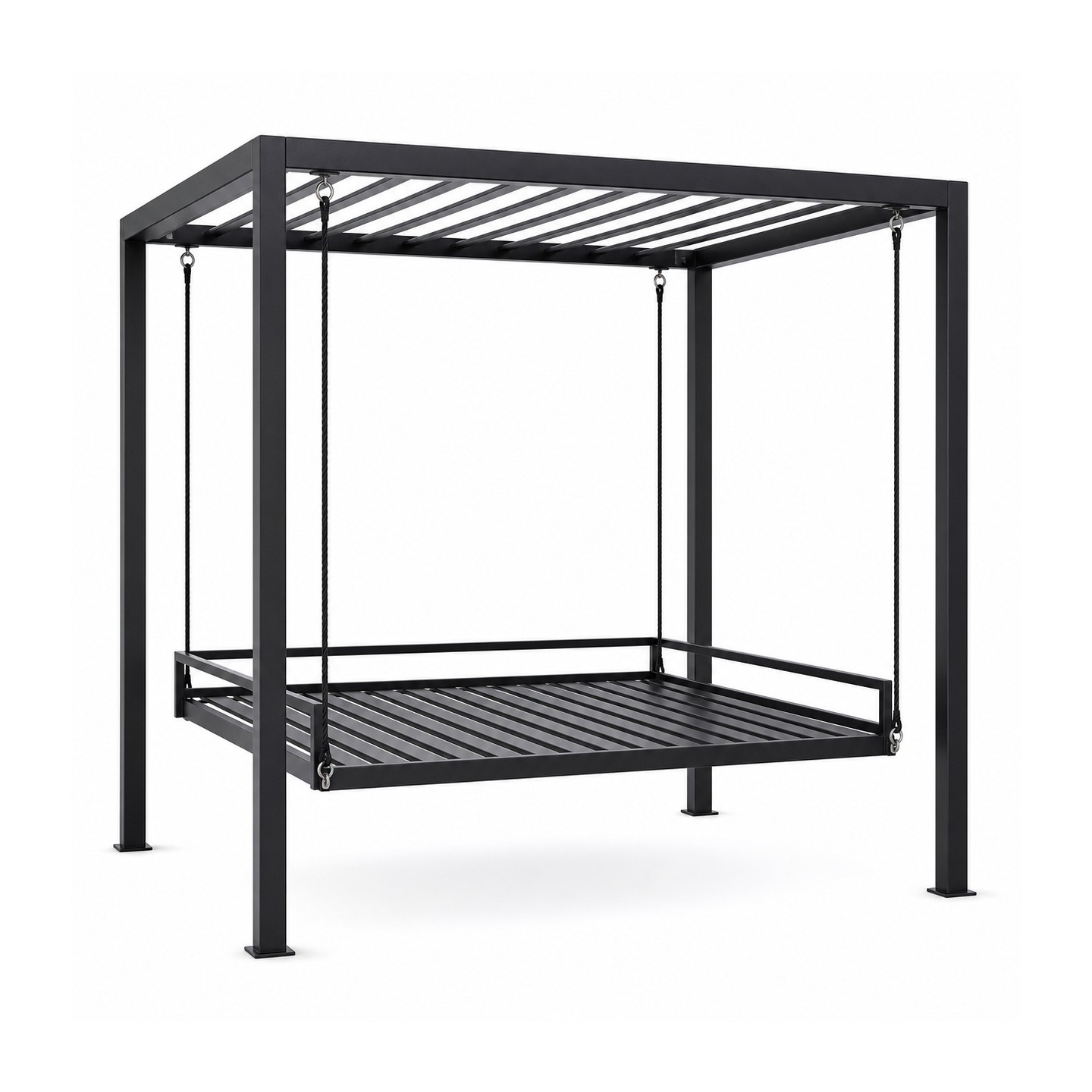

The Cabana is a daybed swing: a bed platform hanging inside its own welded steel frame, under a louvred slat roof. A rigid four-post frame of S235 steel box profile, 80 x 80 to 100 x 100 mm, carries the roof and the platform.

The platform is a steel frame with a slatted deck and a rail on three sides. It hangs on four marine-grade ropes from welded eyelets in the roof beams and can sway, while the louvred roof gives graduated shade. As an outdoor daybed it suits a terrace or a patio.

The default size is 2360 x 1800 x 2100 mm, with a platform for a standard daybed mattress; it can also be built wider, longer, taller or smaller. The frame is sandblasted, zinc-primed and powder-coated in any RAL colour, with base plates for anchoring to a slab or deck.

The supply covers the frame and roof in welded sections, the platform with its rope set, the assembly hardware and the anchoring plates. Cushions and mattress are not included; we give you the exact platform dimensions. Order the standard version at the price shown; for your target dimensions, ask for a quotation before ordering.

Made to order: ships within 8 weeks

Photo, scan or hand drawing. We draw the technical diagram.

Made to measure

Secure checkout

Worldwide delivery

Direct from the workshop

No reviews yet

Cabana Daybed Swing: a Floating Outdoor Lounge

The centrepiece of a terrace. A rigid four-post steel frame, welded from 80 x 80 to 100 x 100 mm box profile, encloses a suspended daybed platform wide enough to stretch out on. Overhead, a louvred slat canopy filters the sun the way a pergola roof does, so the bed stays shaded through the afternoon. The platform hangs on four marine-grade ropes anchored to welded eyelets in the roof beams: stable enough to nap on, free enough to sway.

Made to Measure

The default platform suits a standard daybed mattress, but we regularly build these wider, longer or taller: as a double lounger, matched to cushions you already own, or scaled down for a compact patio. Send your target dimensions and we adapt the frame, roof and platform, at any size on request.

Construction and Materials

Frame: welded steel S235 box profile, 80 x 80 up to 100 x 100 mm
Roof: welded louvred slat canopy for graduated shade
Bed platform: steel frame with slatted deck, railed edge on three sides
Suspension: four-point marine-grade rope with welded anchor eyelets
Default size: 2360 x 1800 x 2100 mm (W x D x H)
Feet: base plates prepared for anchoring to a slab or deck

Finish

Sandblasted, zinc-primed and powder-coated in the RAL colour of your choice. The coating system is specified for permanent outdoor exposure.

What's Included

Four-post frame with louvred roof (delivered in welded sections)
Suspended bed platform with rope suspension set
Assembly hardware and anchoring plates

Cushions and mattress shown are not included; we supply exact platform dimensions so you can fit standard daybed cushions. Bulky item: delivered in Poland, Spain, Italy or the United Kingdom at the flat rate shown at checkout (for the UK, import VAT and duty are paid on arrival); delivery to other countries is by quotation. Products ordered in the shop are ready for collection within 7 weeks of your order, or delivered in Poland, Spain, Italy or the United Kingdom, or by courier in Germany, within 9 weeks, if our order confirmation reaches you by the end of the second working day after your order and you pay within 7 days of receiving it; if it reaches you later, these times run from the day your payment arrives.
