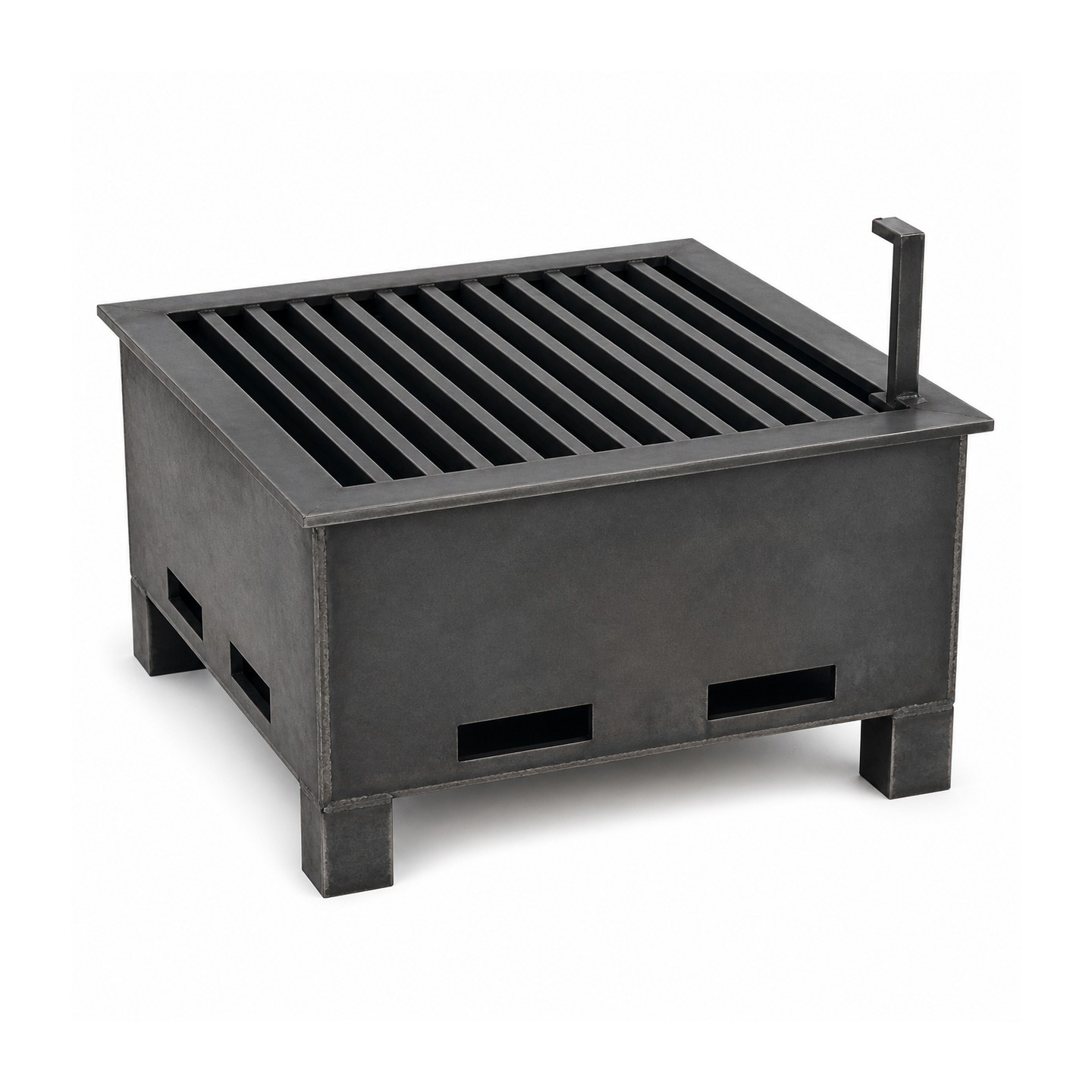

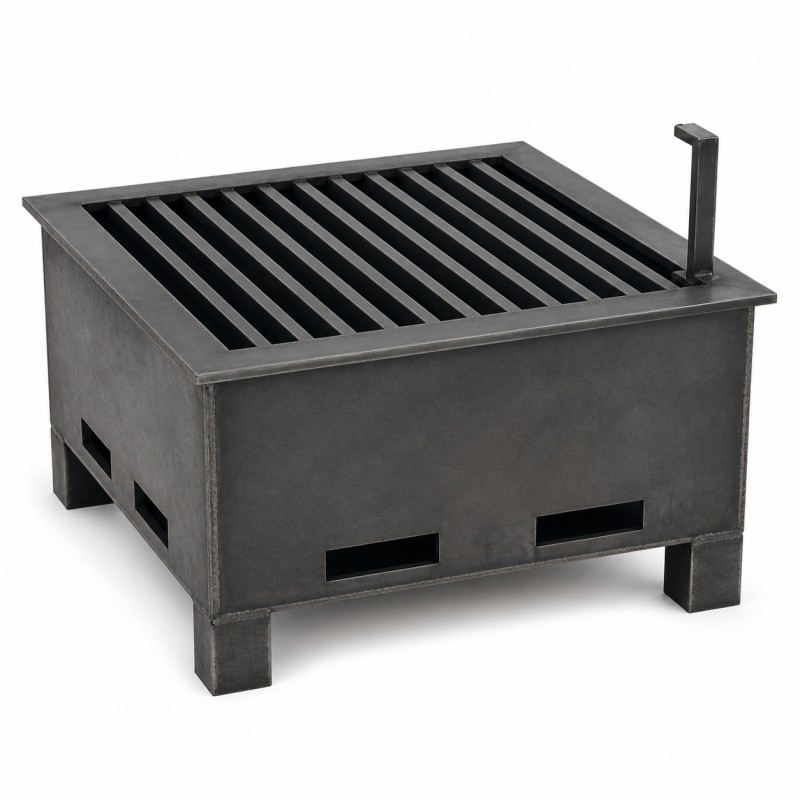

Steel Fire Pit with Grill Grate, studio view

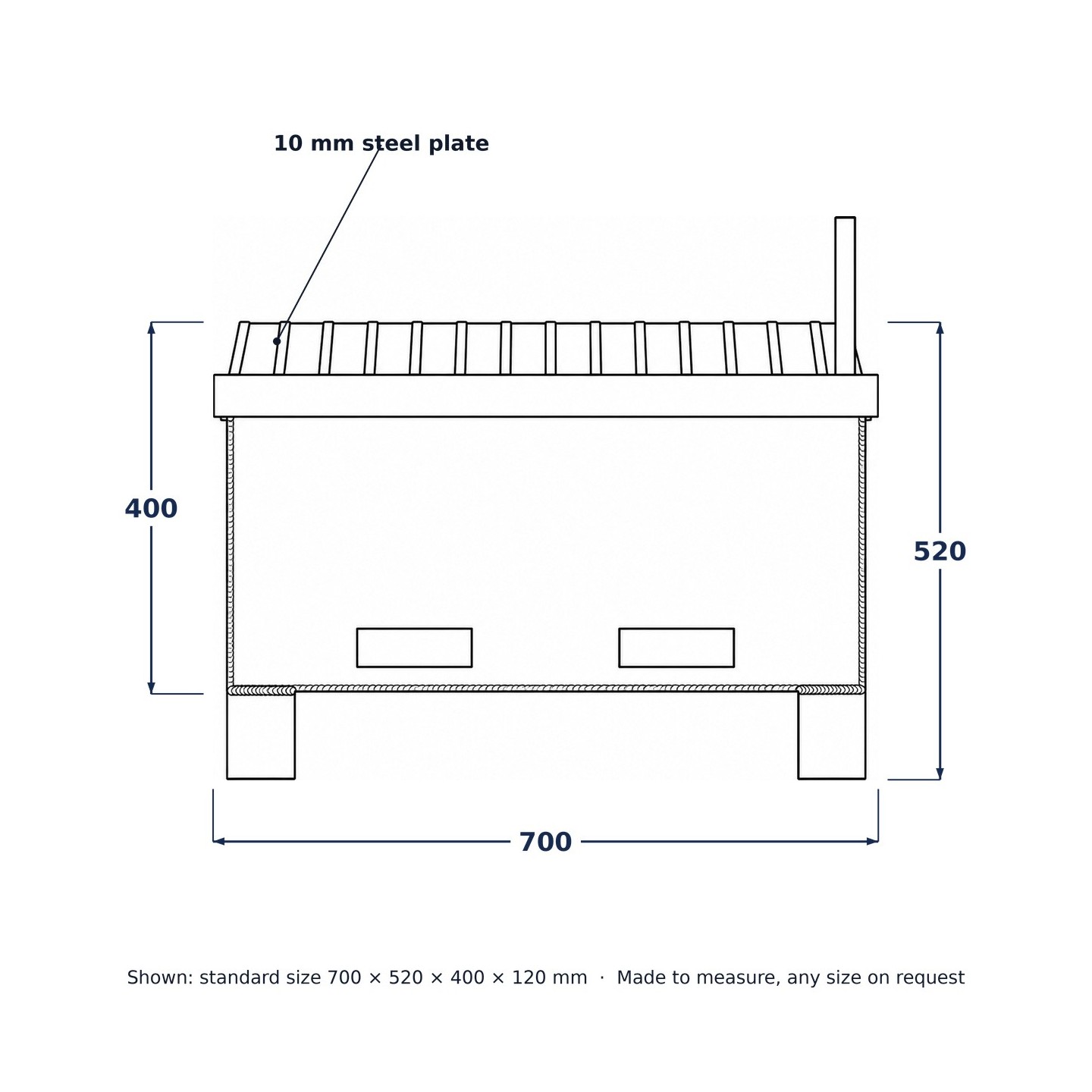

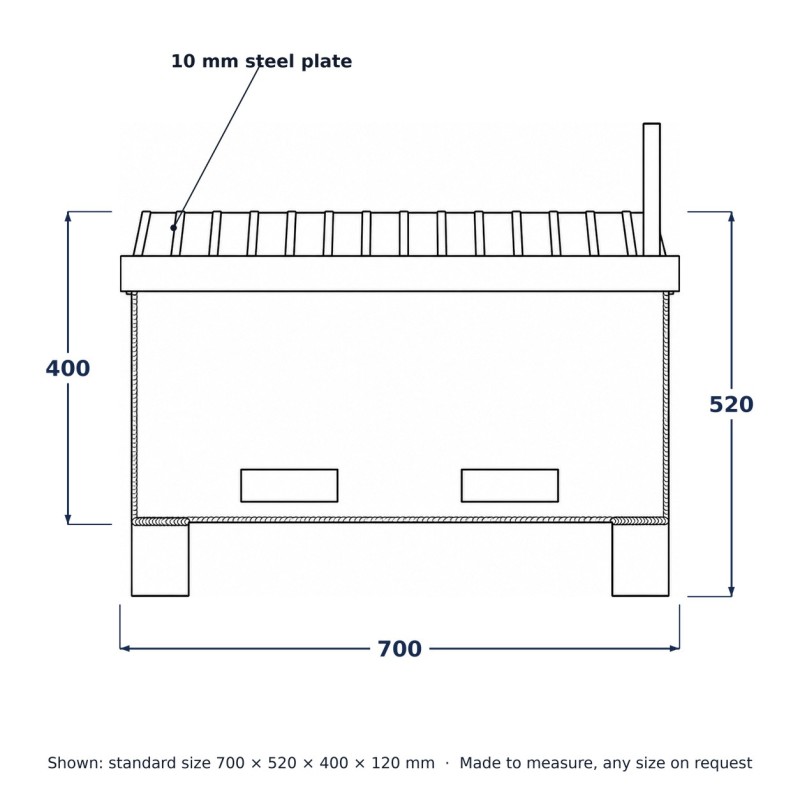

Steel Fire Pit with Grill Grate, line drawing with standard dimensions

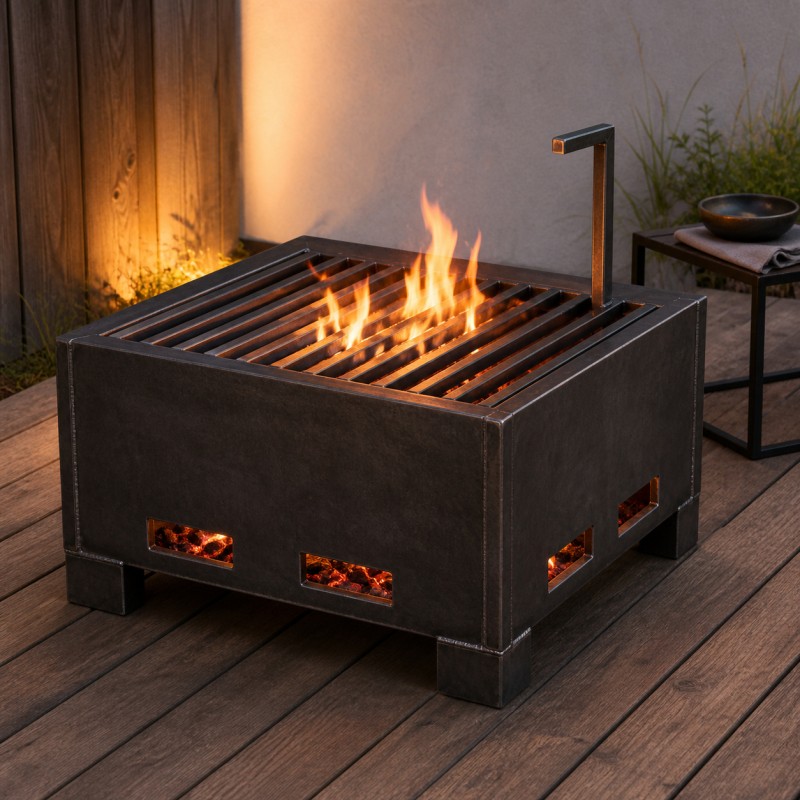

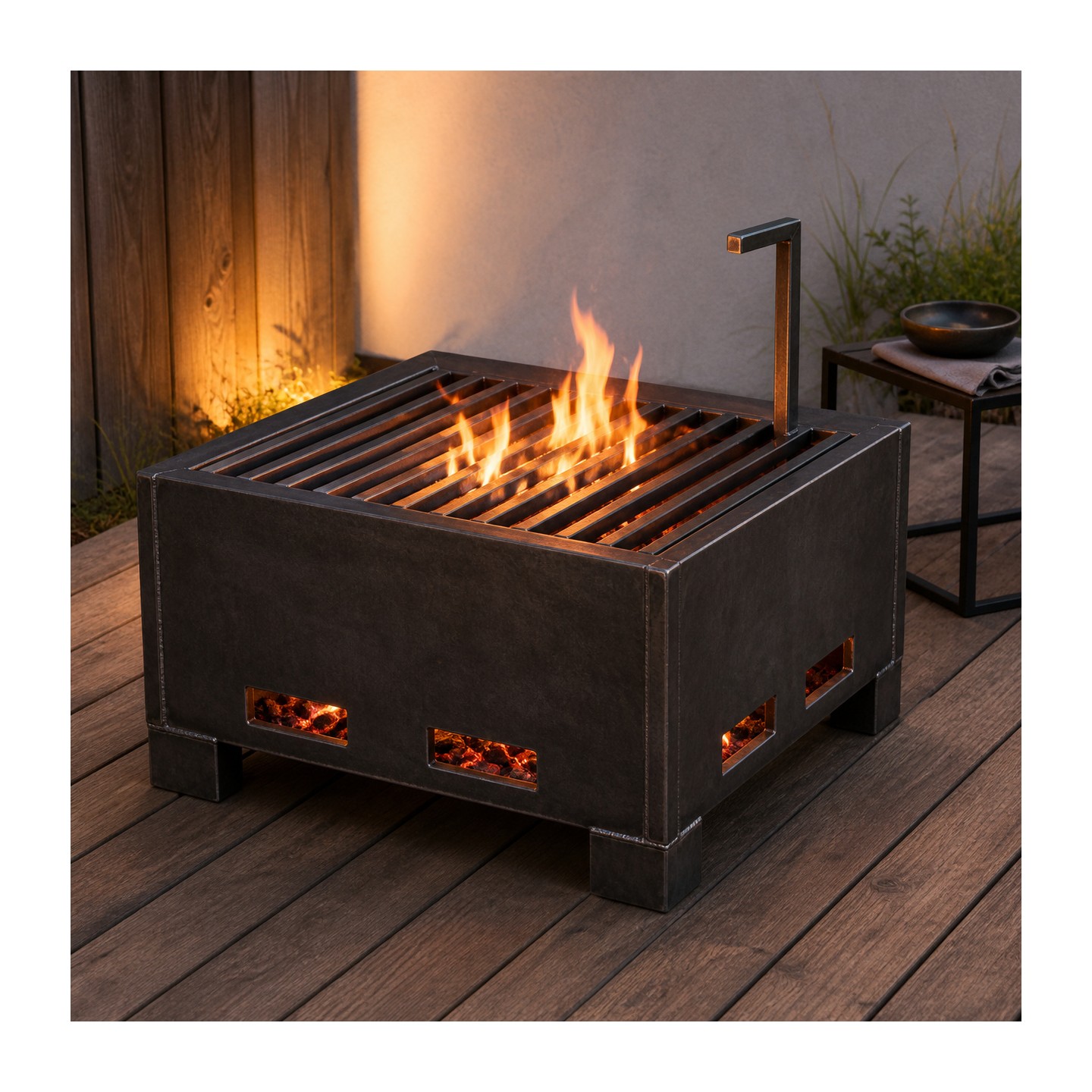

Steel Fire Pit with Grill Grate, burning on a wooden deck in the evening

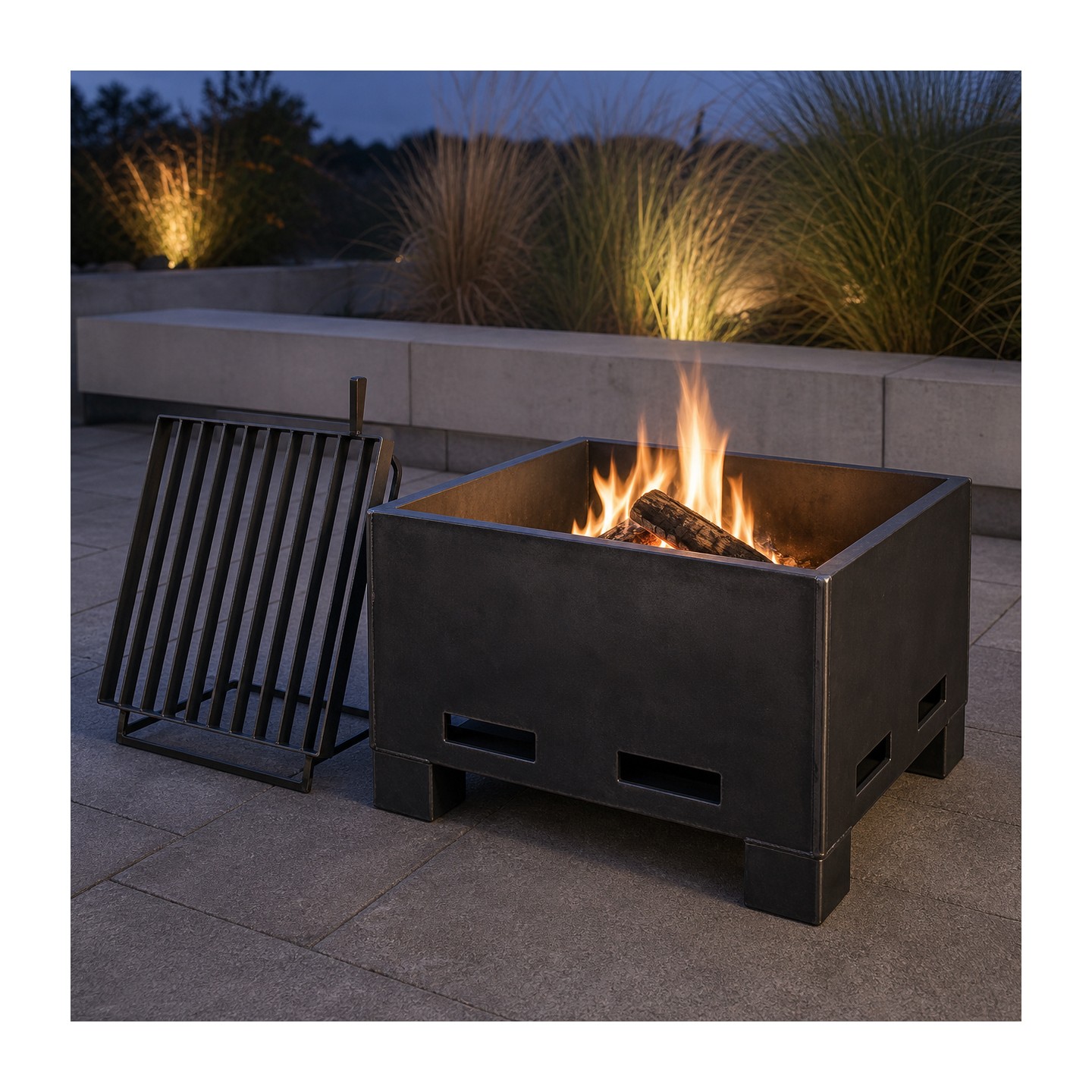

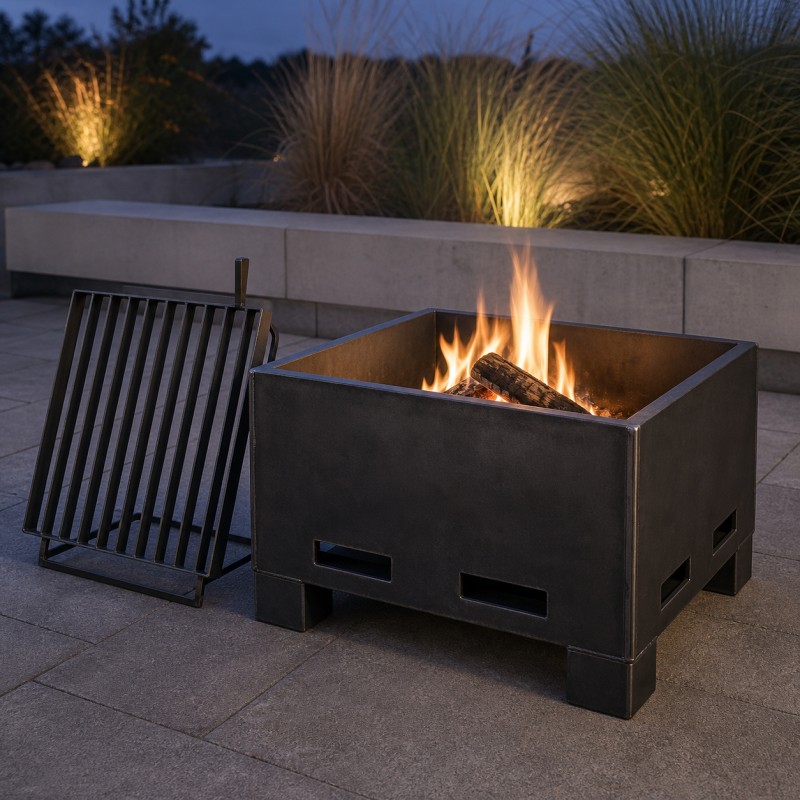

Steel Fire Pit with Grill Grate, grate lifted aside, on a stone terrace at dusk

Steel Fire Pit with Grill Grate

€540.00

No tax

This steel fire pit with grill grate is one welded bowl of 10 mm steel plate, an open fire and a grill in one. The bowl is cut from S235JR structural plate and fully welded, with air cutouts in all four walls.

A removable grate welded from solid steel flat bar sits across the top. Its raised handle arm lets you lift the grate or swing it aside; with the grate off, the bowl is an open fire pit again. The height suits grilling seated or standing at a bench.

The standard bowl is 700 x 700 mm and 400 mm deep, about 520 mm tall excluding the grill arm, on four welded 120 mm block legs. A longer bowl with a half-width grate or a larger grate area is also possible. The finish is raw steel or heat-resistant black; the grate itself stays bare steel.

The bowl arrives as one welded piece, with no assembly, after a workshop test-fit and weld inspection. Order the standard size at the price shown and name your finish in the order comment at checkout; for your own dimensions, ask for a quotation before ordering.

Made to order: ships within 8 weeks

Photo, scan or hand drawing. We draw the technical diagram.

Made to measure

Secure checkout

Worldwide delivery

Direct from the workshop

No reviews yet

Fire pit and grill in one welded body

The Steel Fire Pit with Grill Grate takes our square 10 mm plate fire pit and adds what most garden grills lack: real mass, real heat retention and a cooking grate you can trust with a full load of coals underneath. The bowl is CNC-cut from S235JR structural plate and fully welded; rectangular air cutouts in all four walls pull air through the fire bed, so you get from cold logs to a stable cooking ember bed fast.

The grill grate

Across the top sits a removable grate welded from solid steel flat bar, not chromed wire that sags and rusts, but bar stock that sears properly and cleans with a brush. A raised handle arm stands clear of the heat so the grate can be lifted or swung aside safely, turning the grill back into an open fire pit in seconds. When the cooking is done, take the grate off entirely and enjoy the fire.

Made to measure: any size you need

The standard bowl is 700 x 700 mm with a 400 mm depth, standing about 520 mm tall on 120 mm welded block legs, a comfortable working height for grilling while seated or standing at a bench. As with everything we build, the size is yours to decide: a longer bowl with a half-width grate for simultaneous grilling and open fire, a lower profile for a sunken terrace, or a larger grate area for feeding a crowd. Ask for a quotation with your dimensions and we fabricate to them.

Materials and construction

Bowl walls and base: 10 mm hot-rolled steel plate, grade S235JR
Removable grill grate in solid steel flat bar with raised handle arm
Continuous MAG welds along every seam, ground where visible
Four 120 mm block legs; side air cutouts in each wall for strong draft
No assembly required: bowl arrives as one welded piece, grate lifts on and off

Finish options

Raw steel weathers to an even dark patina and needs no maintenance, or choose a heat-resistant black coating for a uniform matte finish. Fire-contact surfaces get a dedicated high-temperature finish rather than conventional powder coating, which cannot survive the burn zone; RAL powder coating is available for non-fire components on custom builds. The grate itself is left as bare steel, the correct, food-safe choice for any cooking surface over live fire.

What is included

Fully welded fire pit bowl in your chosen size and finish
Removable flat-bar grill grate with handle arm
Workshop test-fit and weld inspection before dispatch
Care sheet for the grate and your chosen finish

Ordering and lead time

Order the standard size at the price shown; for your own dimensions, ask for a quotation at [email protected] before ordering. Products ordered in the shop are ready for collection within 7 weeks of your order, or delivered in Poland, Spain, Italy or the United Kingdom, or by courier in Germany, within 9 weeks, if our order confirmation reaches you by the end of the second working day after your order and you pay within 7 days of receiving it; if it reaches you later, these times run from the day your payment arrives.
