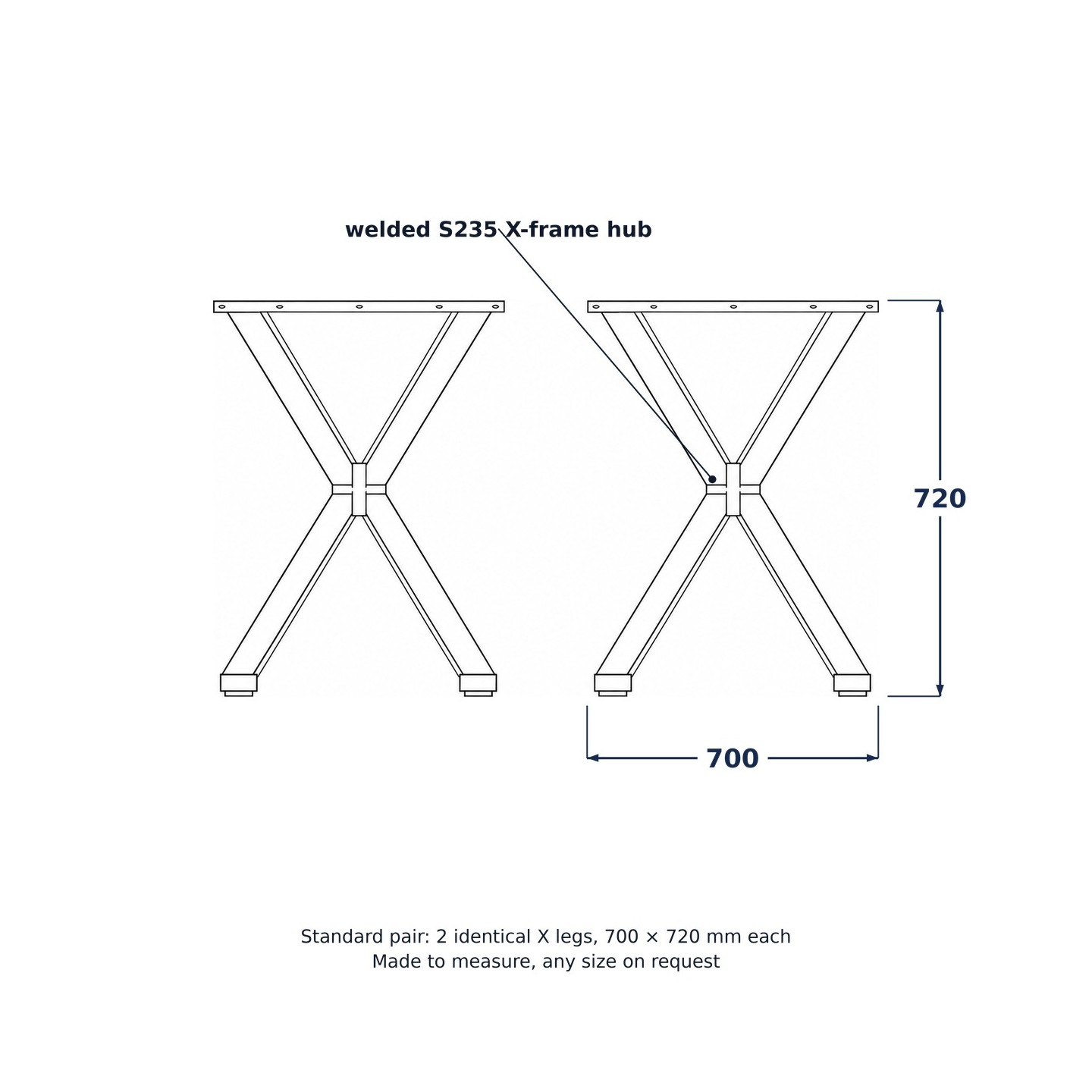

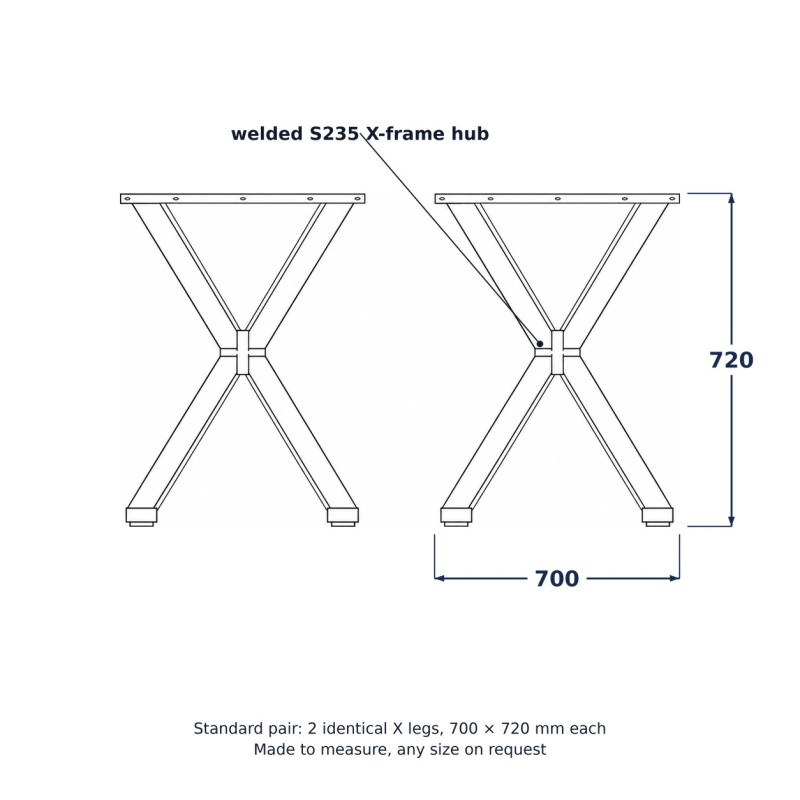

X Table Legs (Pair), line drawing with standard dimensions

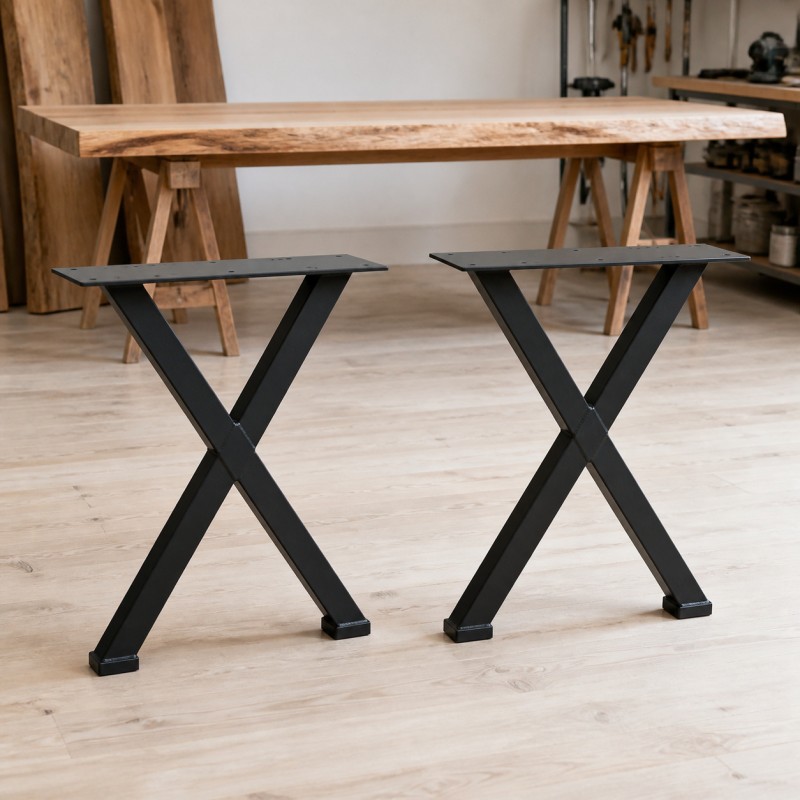

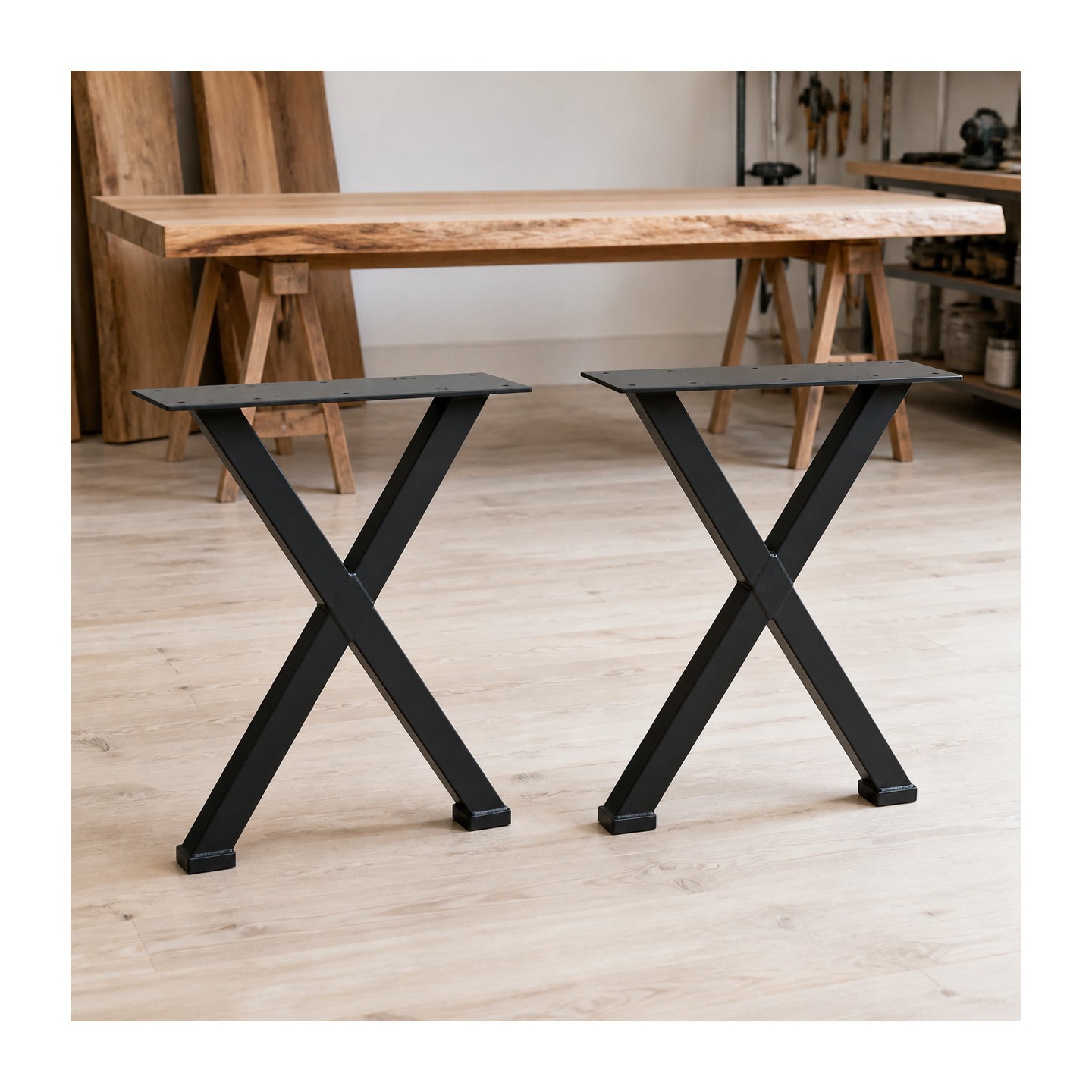

X Table Legs (Pair), in a workshop with a live-edge wooden top

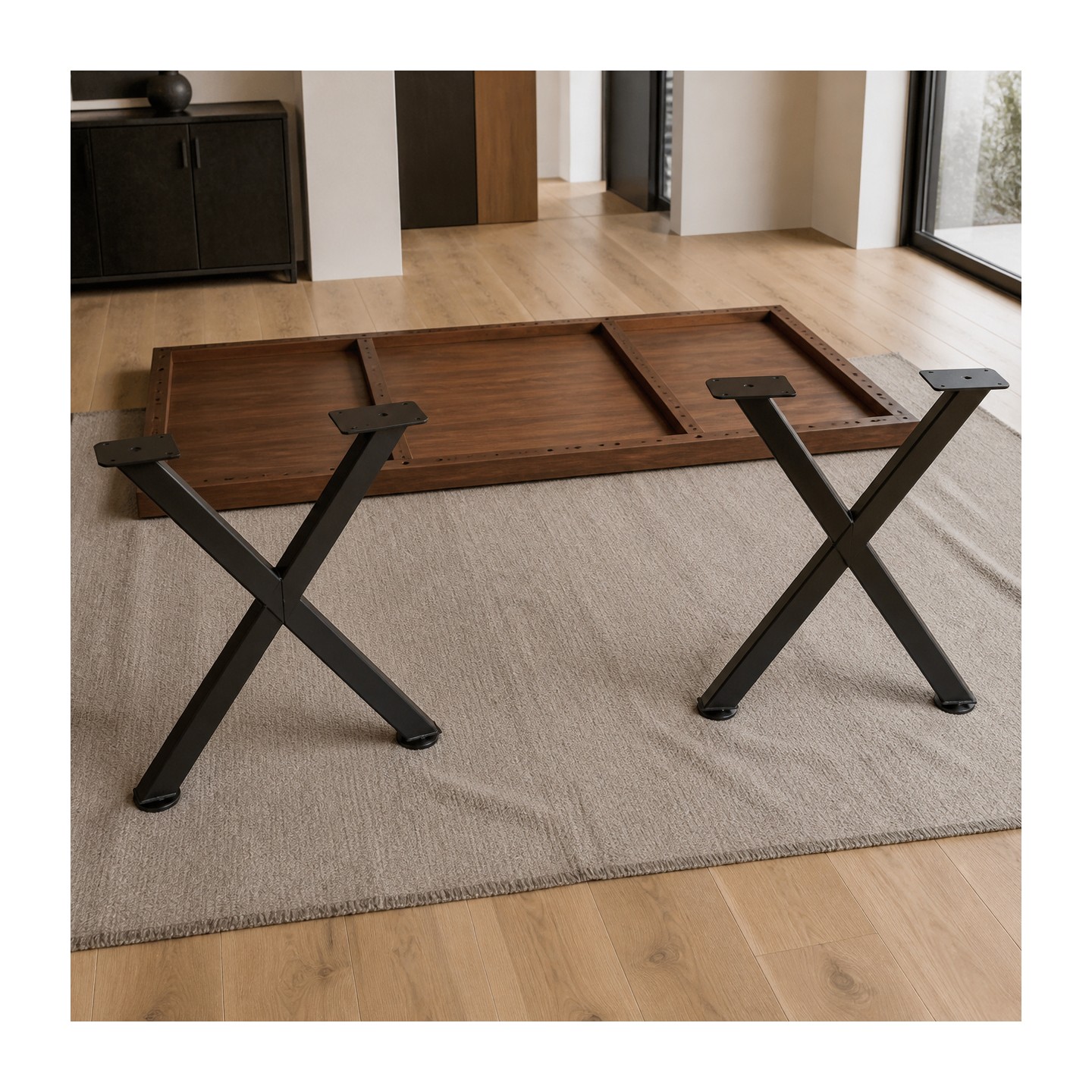

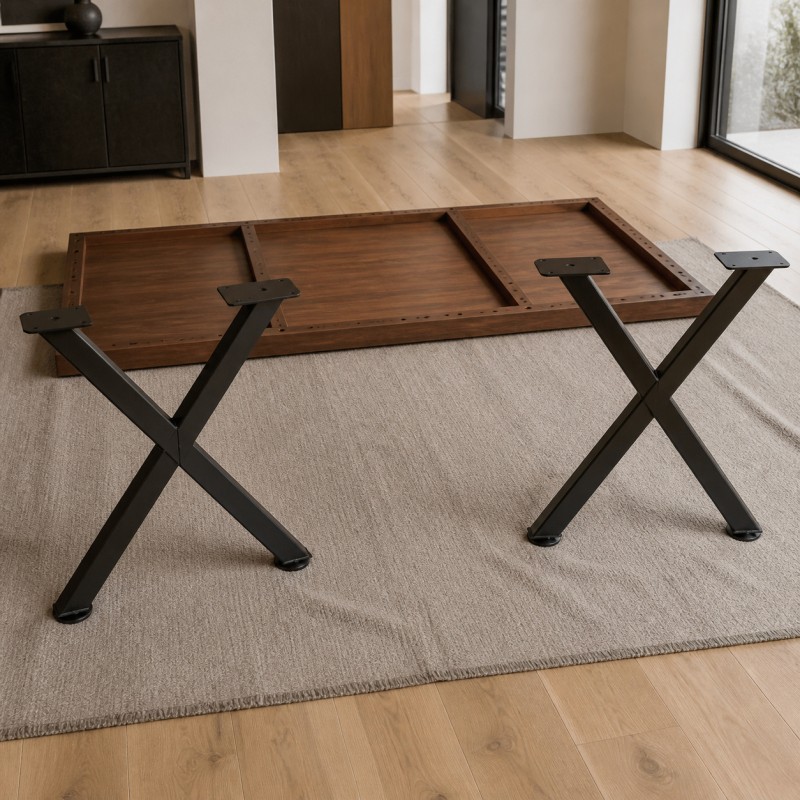

X Table Legs (Pair), fitted to an upturned walnut top on a rug

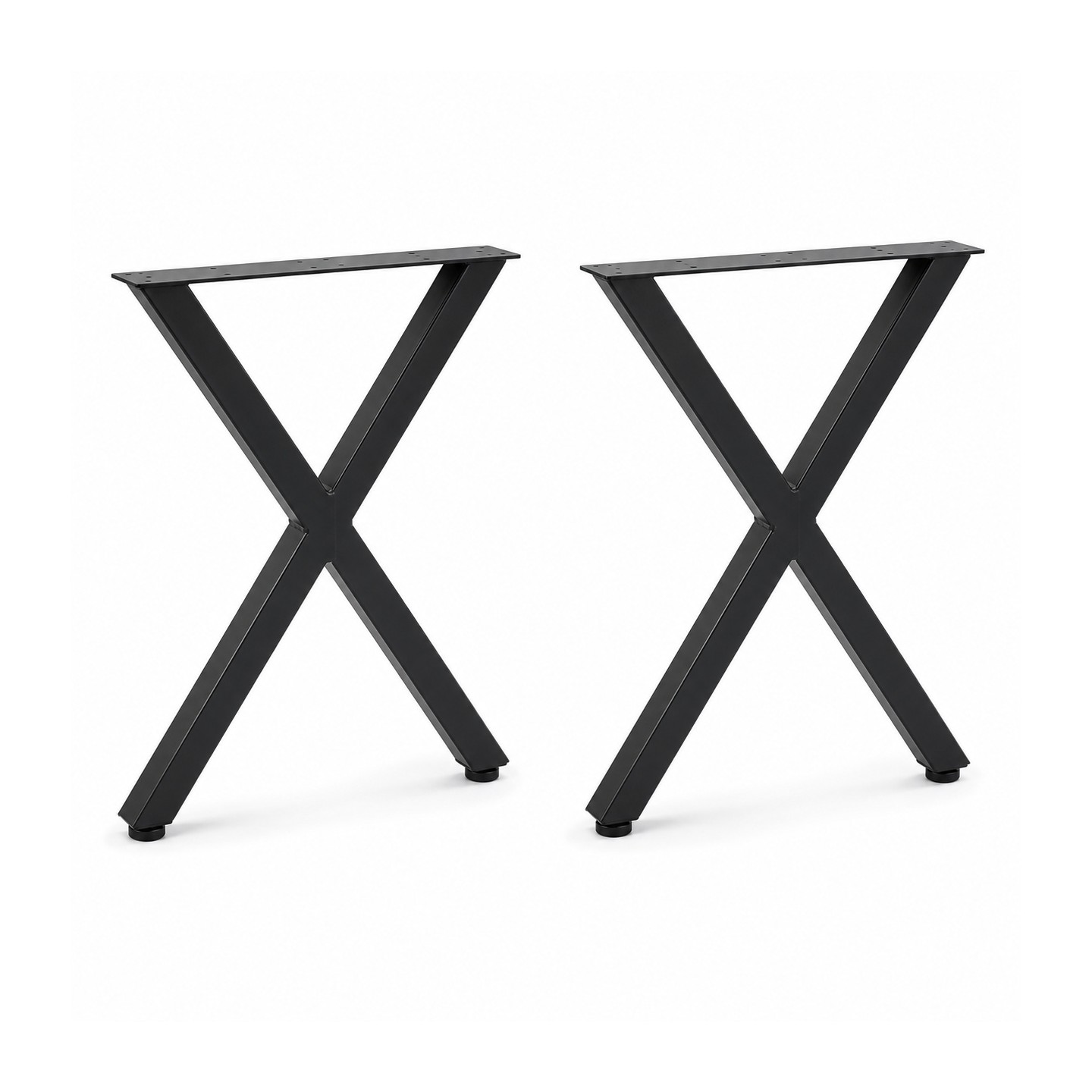

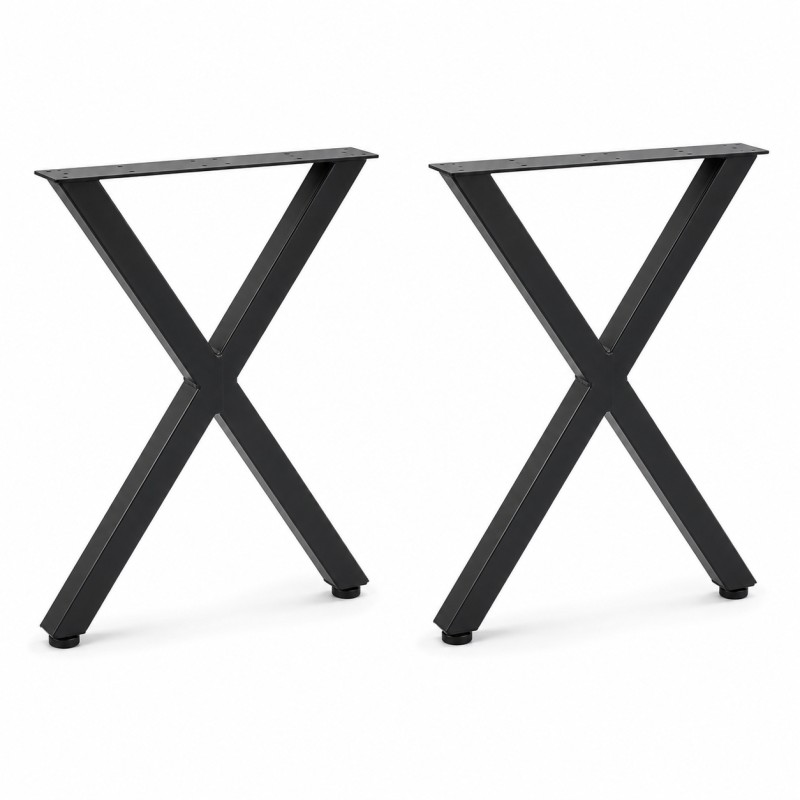

X Table Legs (Pair)

€340.00

No tax

The X Table Legs (Pair) are metal table legs for a wood or sintered-quartz top you already own. Each welded steel leg is an X-frame of angled closed profiles that meet in a compact welded hub.

They suit anyone who already has a top and needs a base for it. There are no stretchers or aprons, so knees and chairs get the full clear space under the top.

The standard pair is 720 mm tall, suited to a 40 mm top at dining height, with a spread of approx. 700 mm per leg. Other heights for bar, desk, console or bench use, and a spread matched to the length and overhang of your top, are welded on request. The legs are powder-coated, matte black as standard or any RAL colour.

Pre-drilled steel plates on each arm tip bolt to a wooden top; for sintered quartz we advise an adhesive mount. Included are the two legs, mounting plates with bolts and floor pads. The top is not included. Order the standard pair at the price shown; for your own top size and height, ask for a quotation before ordering.

Made to order: ships within 8 weeks

Photo, scan or hand drawing. We draw the technical diagram.

Made to measure

Secure checkout

Worldwide delivery

Direct from the workshop

No reviews yet

X legs for the top you already love

You have the slab: the live-edge oak, the walnut plank, the sintered-quartz panel. What it needs is a base that carries it without wobble and looks deliberate doing it. These X legs are the same welded bases we build for our own dining tables, sold as a pair for customer-supplied tops.

Each leg is an X-frame of angled closed steel profiles converging in a tight welded hub. The geometry does the work: loads travel straight down the diagonals, so the base is stiff without stretchers or aprons, and knees and chairs get the full clear span under the top.

Made to measure: any size on request

The standard pair stands 720 mm tall (right for a 40 mm top landing at dining height) with roughly a 700 mm footprint spread per leg. As a made-to-measure fabricator we will happily adjust:

Height for bar, desk, console or bench applications
Spread and plate spacing matched to your top's length and overhang
Single central spider hub instead of a pair, for pedestal-style tables

Materials and construction

Profiles: closed steel S235 sections, fully welded and ground at the hub
Mounting: pre-drilled steel plates on each arm tip for bolting to wood; adhesive-mount option advised for sintered quartz
Feet: capped ends with protective floor pads

Finish

Powder-coated. Matte black is standard; any RAL colour in matte, satin or structural texture on request.

What is included

Two fully welded X legs, powder-coated
Mounting plates with fixing bolts for wooden tops
Floor protection pads

Tops are not included. That is the point. Products ordered in the shop are ready for collection within 7 weeks of your order, or delivered in Poland, Spain, Italy or the United Kingdom, or by courier in Germany, within 9 weeks, if our order confirmation reaches you by the end of the second working day after your order and you pay within 7 days of receiving it; if it reaches you later, these times run from the day your payment arrives.
